West Coast Pavilion
Atelier Manferdini, 2006

The pavilion is a sandwich of undulating layers that diverge and coalesce around and through its volume. The surface of the skin, combined with the diamond-shaped structure, behaves like three dimensional lacework, creating a dynamic screening and filtering effect.

CNC-routing plywood for inner structure.

Assembled wall, from exterior.

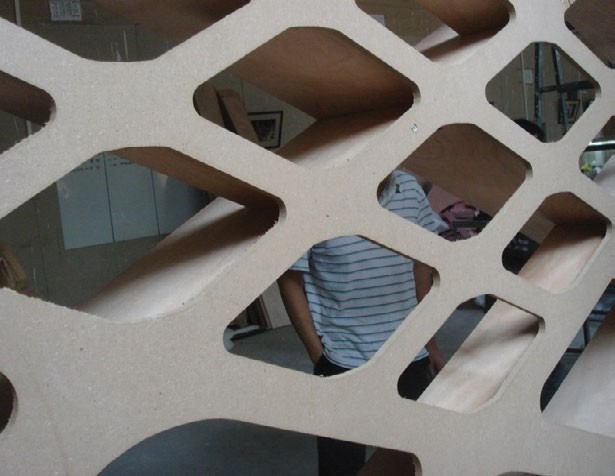

Assembled plywood and MDF wall structure. Photo: Courtesy Neil Leach

Cut, folded, and assembled metal cladding panels. Photo: Courtesy Neil Leach

Laser-cutting metal cladding panel. Photo: Courtesy Jae Rodriguez.

Templates for laser-cutting metal cladding panels.

Completed project.

Completed project.
